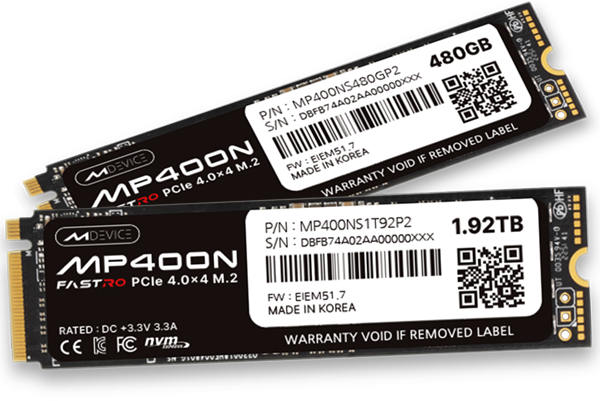

MP400N


Enterprise SSD PCIe 4.0x4 M.2


PCIe Gen4 Data Center Storage in M.2 Form Factors


The MP400N enterprise SSD is optimized for high consistency with excellent Quality of Service (QoS)
over intensive read and write command executions.



MP4OON

Enterprise SSD PCIe 4.0x4 M.2


PCIe Gen4 Data Center Storage in M.2 Form Factors


The MP400N enterprise SSD is optimized for high consistency with excellent Quality of Service (QoS) over intensive read and write command executions.



KEY FEATURES


Sustained

Performance


Stable

Power



Excellent

QoS


High Consistency


Security


Small

Form-Factor

Interface Specifications

PCIe Gen4X4 Single Port

Capacity

480 GB up to 1920 GB





Form-Factor Specifications

M.2 2280




SSD Power Consumption

Idle: MAX 3.5W / Active: MAX 9.8W




SSD Function

64 Namespaces / TCG Opal 2.0 /

AES-XTS 256 / End-to-End / PLP / NVMe-MI




 Performance

Seq Read (up to)  6.0 GB/s

Seq Write (up to)  1.8 GB/s

Random Read(up to) 800 KIOPs

Random Write(up to) 60 KIOPs

Product Features

The following is a list of advanced or unique features supported by MP400N


  • PCIe 4.0 x 4
  • NVMe 1.4
  • Capacity up to 1.92TB
  • Form Factor: M.2 2280
  • DWPD: 1
  • 64 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • SECDED
  • Sanitize
  • NVMe-MI (Management Interface)
  • SMBus

3-Year Warranty

   Backed by 3-Year Limited Warranty We promise a '3-year limited warranty and free technical support' for users to use with peace of mind.

Specifications

Thorough quality control through in-house design and production



   Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.

KEY FEATURES

Sustained
Performance
Stable
Power
Excellent
QoS
High Consistency


Security


Small
Form-Factor



Interface Specifications

PCIe Gen4x4 Single Port




Capacity                                                  Form-Factor Specifications


480 GB up to 1920GB                                                                                   M.2 2280











              Performance


                       Seq Read (up to)  6.0 GB/s


                       Seq Write (up to)  1.8 GB/s


                       Random Read (up to)  800 KIOPs


                       Random Write (up to)  60 KIOPs





SSD Power Consumption               SSD Function


Idle: MAX 3.5W / Active: MAX 9.8W                                                 64 Namespaces / TCG Opal 2.0 / AES-XTS 256 / End-to-End / PLP                                                                                                                / NVMe-MI







Product Features

The following is a list of advanced or unique features supported by MP400N


  • PCIe 4.0 x4
  • NVMe 1.4
  • Capacity up to 1.92TB
  • Form Factor: M.2 2280
  • DWPD: 1
  • 64 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • SECDED
  • Sanitize
  • NVMe-MI (Management Interface)
  • SMBus


3-Year Warranty


Backed by 3-Year Limited Warranty

We promise a '3-year limited warranty and

free technical support' for users to use

with peace of mind.

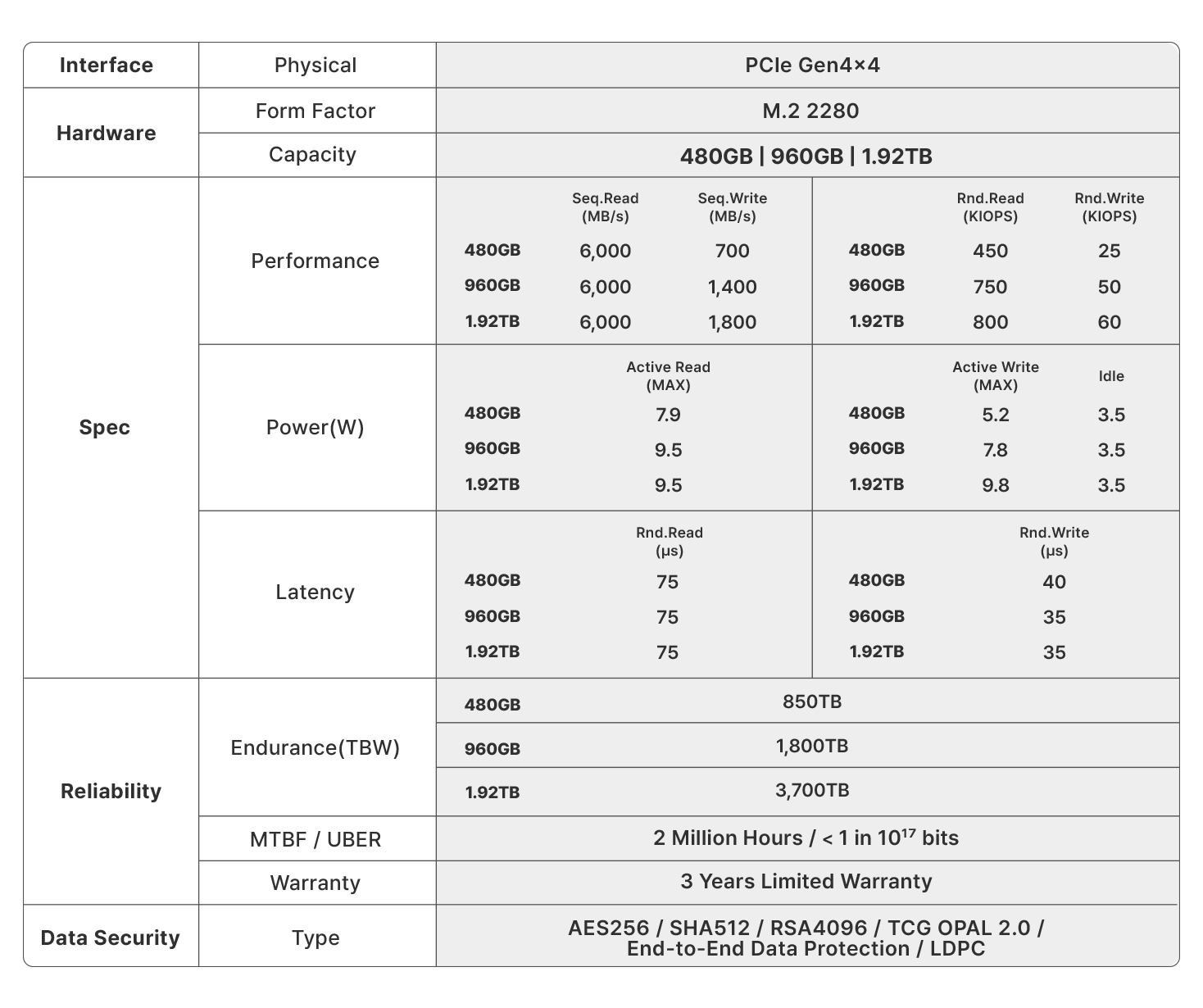

                             MP400N Specifications



Interface
Physical
PCIe 4.0x4, NVMe 1.4

Hardware

Form Factor
M.2 2280
Capacity (O.P. 7%)
480GB｜960GB｜1.92TB
Performance
Sequential Read
6,000 MB/s
Sequential Write
1,800 MB/s
Power
Active Max｜Write
< 10W｜< 10W
Idle
< 3.5W
Latency
Random Read (QD = 32 )
75µs
Random Write  (QD = 32 )
35µs
Reliability
Endurance(TBW)
1DWPD
MTBF / UBER
2 Million Hours / < in 10¹⁷ bits
Warranty
3 Years Limited Warranty
Data Security
Type
AES256 / SHA512 / RSA4096 / TCG OPAL 2.0
/ End-to-End Data protection / LDPC

- All product specifications reflect internal results and may vary depending on the user's system configuration.

- All product images are examples and may not precisely match the actual product.

- Mdevice reserves the right to change product images and documentation at any time without prior notice.

Thorough quality control through in-house design and production

Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
