MP400


Enterprise SSD PCIe 4.0x4 U.2


MP400 SSD Platform

– Outstanding Overachiever Enterprise-Class PCIe Gen 4x4 SSD



The MP400 SSD platform offers unrivaled performance while consuming the least amount of power for its class.

Utilizing Mdevice’s unique and patented CPU architecture, the MP400 is available up to 30.72TB at only 21W.


MP400 is compliant with FIPS-140 standards for cryptographic modules and is available with other security specifications.

Support through our IMAGIN+ customization service allows you to align this solution with your required security standards.





MP4OO

Enterprise SSD PCIe 4.0x4 U.2


MP400 SSD Platform

- Outstanding Overachiever

Enterprise-Class PCIe Gen 4x4 SSD



The MP400 SSD platform offers unrivaled performance while consuming the least amount of power for its class. Utilizing Mdevice's unique and patented CPU architecture, the MP400 is available up to 30.72TB at only 21W


MP400 is compliant with FIPS-140 standards for cryptographic modules and is available with other security specifications. Support through our IMAGIN+ customization service allows you to align this solution with your required security standards.




KEY FEATURES


Sustained

Performance


Dual-Port

Support


Stable

Power


High Capacity

up to 30.72TB



Security


Excellent

QoS

Interface Specifications

PCIe Gen4x4 Dual Port

The MP400 features dual ports to ensure smooth computing even if one port fails. This helps preserve business continuity.

Capacity

1.6TB up to 30.72 TB




Form-Factor

Specifications

U.2 2.5”



SSD Power Consumption

Idle: MAX 6W / Active: MAX 21W




SSD Function

64 Namespaces / ISE / TCG Opal 2.0 /

AES-XTS 256 / End-to-End / PLP / NVMe-MI




 Performance

Seq Read (up to)  7.0 GB/s

Seq Write (up to)  6.8 GB/s

Random Read (up to)  1600 KIOPs

Random Write (up to)  480 KIOPs


Product Features

The following is a list of advanced or unique features supported by MP400


  • PCIe 4.0 1x4 / 2x2 (Dual port)
  • NVMe 1.4
  • Capacity up to 30.72TB
  • Form Factor: U.2
  • DWPD: 1
  • 64 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • SECDED
  • Sanitize
  • NVMe-MI (Management Interface)
  • SMBus

3-Year Warranty

   Backed by 3-Year Limited Warranty We promise a '3-year limited warranty and free technical support' for users to use with peace of mind.

Specifications

- All product specifications reflect internal results and may         vary depending on the user's system configuration.

- All product images are examples and may not precisely match the actual product.

- Mdevice reserves the right to change product images and documentation at any time without prior notice.

Thorough quality control through in-house design and production



   Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.

KEY FEATURES

Sustained
Performance
Dual-Port
Support
Stable
Power
High Capacity
up to 30.72TB


Security


Reliable
Thermal Control



Interface Specifications

PCIe Gen4x4 Dual Port



The MP400 features dual ports to ensure

smooth computing even if one port fails.


This helps preserve business continuity.





Capacity                                                  Form-Factor Specifications


1.6 TB up to 30.72 TB                                                                                   U.2 2.5”








              Performance


                       Seq Read (up to)  7.0 GB/s


                       Seq Write (up to)  6.8 GB/s


                       Random Read (up to)  1600 KIOPs


                       Random Write (up to)  480 KIOPs







SSD Power Consumption                SSD Function


Idle: MAX 6W / Active: MAX 21W                                                      64 Namespaces / ISE / TCG Opal 2.0 / AES-XTS 256 / End-to-End

                                                                                                              PLP / NVMe-MI







Product Features

The following is a list of advanced or unique features supported by MP400


  • PCIe 4.0 1x4 / 2x2 (Dual port)
  • NVMe 1.4
  • Capacity up to 30.72TB
  • Form Factor: U.2
  • DWPD: 1
  • 64 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • Metadata Protection
  • SECDED
  • Sanitize
  • NVMe-MI (Management Interface)
  • SMBus


3-Year Warranty


Backed by 3-Year Limited Warranty

We promise a '3-year limited warranty and

free technical support' for users to use

with peace of mind.

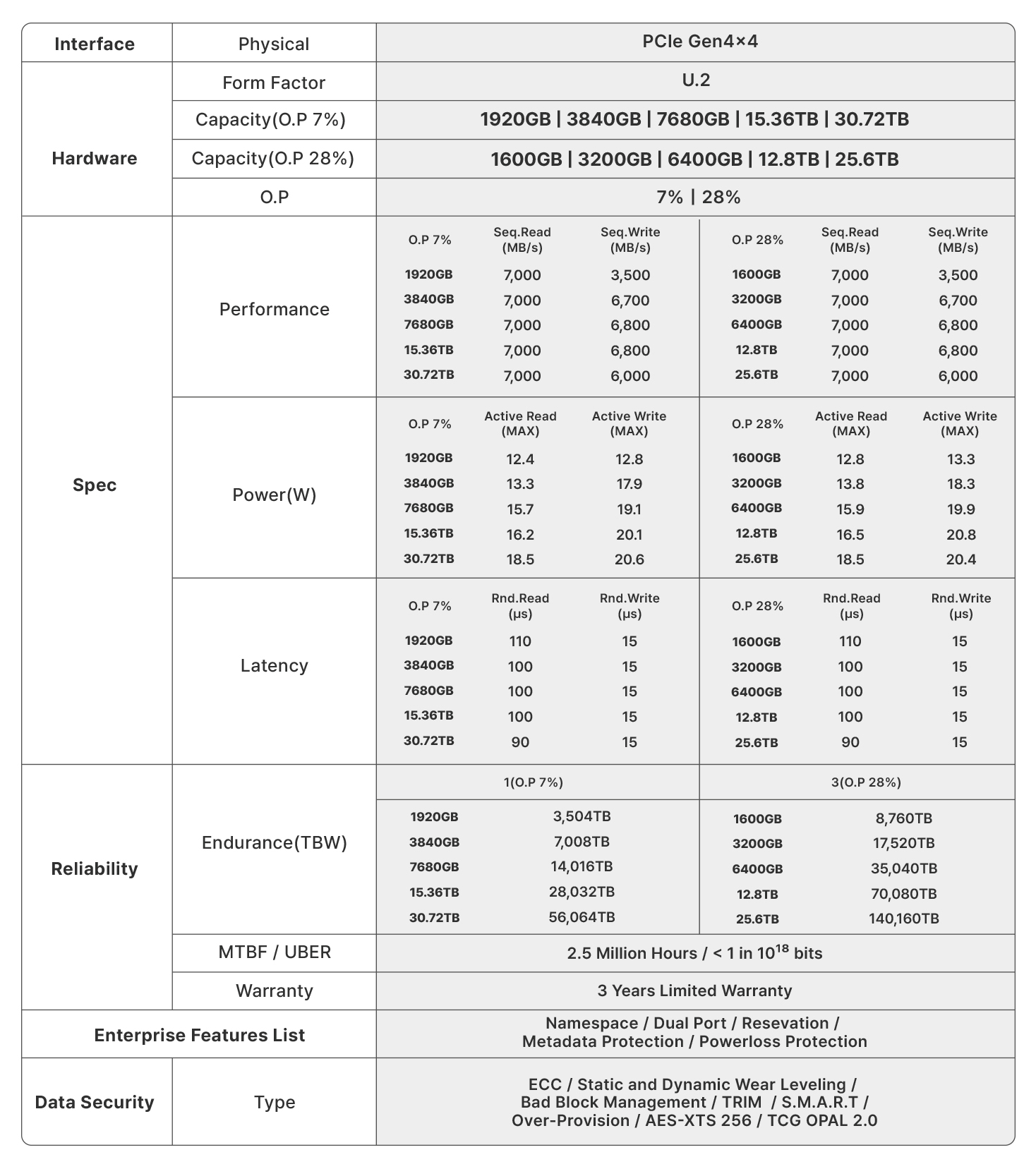

MP400 Specifications





Interface
Physical
PCIe Gen4x4

Hardware

Form Factor
U.2
Capacity(O.P 7%)
1920GB | 3840GB | 7680GB | 15.36TB | 30.72TB
Capacity(O.P 28%)
1600GB | 3200GB | 6400GB | 12.8TB | 25.6TB
O.P
7% | 28%
Spec

Performance
O.P 7%
Seq.Read
(MB/s)
Seq.Write
(MB/s)
O.P 28%
Seq.Read
(MB/s)
Seq.Write
(MB/s)
1920GB
7,000
3,500
1600GB
7,000
3,500
3840GB
7,000
6,700
3200GB
7,000
6,700
7680GB
7,000
6,800
6400GB
7,000
6,800
15.36TB
7,000
6,800
12.8TB
7,000
6,800
30.72TB
7,000
6,000
25.6TB
7,000
6,000

Power(W)
O.P 7%
Active Read
(MAX)
Active Write
(MAX)
O.P 28%
Active Read
(MAX)
Active Write
(MAX)
1920GB
12.4
12.8
1600GB
12.8
13.3
3840GB
13.3
17.9
3200GB
13.8
18.3
7680GB
15.7
19.1
6400GB
15.9
19.9
15.36TB
16.2
20.1
12.8TB
16.5
20.8
30.72TB
18.5
20.6
25.6TB
18.5
20.4
Latency
O.P 7%
Rnd.Read(㎲)Rnd.Write(㎲)
O.P 28%
Rnd.Read(㎲)Rnd.Write(㎲)
1920GB
110
15
1600GB
110
15
3840GB
100
15
3200GB
100
15
7680GB
100
15
6400GB
100
15
15.36TB
100
15
12.8TB
100
15
30.72TB
90
15
25.6TB
90
15

Reliability


Endurance(TBW)
1(O.P 7%)
3(O.P 28%)
1920GB
3,504 TB
1600GB
8,760 TB
3840GB
7,008 TB
3200GB
17,520 TB
7680GB
14,016 TB
6400GB
35,040 TB
15.36TB
28,032 TB
12.8TB
70,080 TB
30.72TB
56,064 TB
25.6TB
140,160 TB
MTBF / UBER
2.5 Million Hours / < 1 in 10¹⁸ bits
Warranty
3 Years Limited Warranty
Enterprise Features List

Namespace / Single Port / Resevation /

Metadata Protection / Powerloss Protection

Data Security
Type

ECC / Static and Dynamic Wear Leveling / Bad Block Management

 / TRIM  / S.M.A.R.T / Over-Provision / AES-XTS 256 / TCG OPAL 2.0


- All product specifications reflect internal results and may vary depending on the user's system configuration.

- All product images are examples and may not precisely match the actual product.

- Mdevice reserves the right to change product images and documentation at any time without prior notice.

Thorough quality control through in-house design and production

Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
