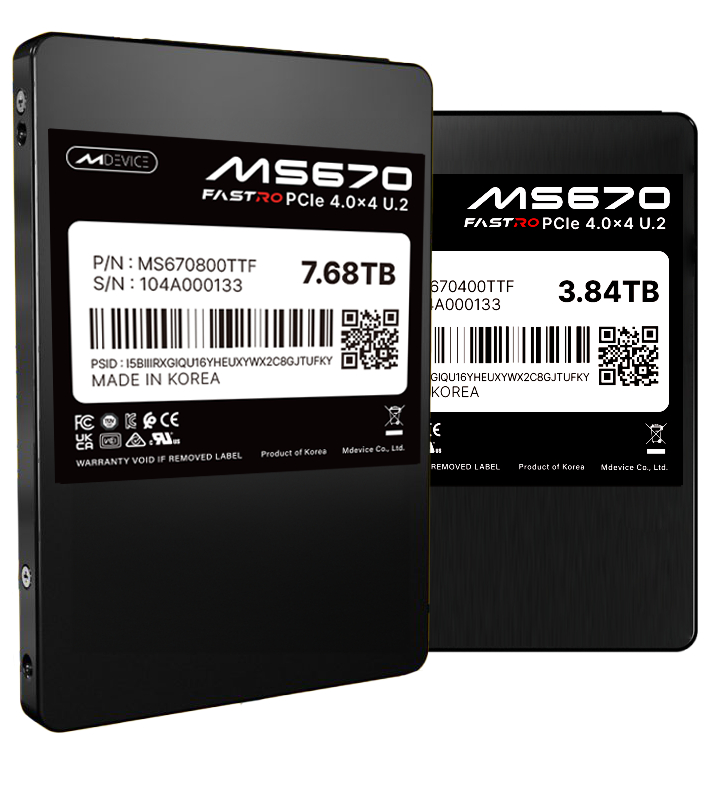

MS670


Enterprise U.2 NVMe PCIe Gen4x4


Unmatched Performance For Data Center


The MS670 U.2 is ideal for data centers that require optimal sustained performance with heavy mixed workloads.
It is suitable for a variety of servers such as web, streaming, application and cache servers



KEY FEATURES


Sustained

Performance


Stable

Power



Dual-Port

Support


Low

Latency


Security


Excellent

QoS

Interface Specifications

PCIe Gen4x4 Dual Port

Capacity

1.92TB | 3.84TB | 7.68TB





Form-Factor Specifications

U.2 2.5”




SSD Power Consumption

Idle: MAX 3.5W / Active: MAX 14.5W




SSD Function

128 Namespaces / TCG Opal 2.0 /

AES-XTS 256 / End-to-End / PLP / NVMe-MI




 Performance



Seq Read (up to)  6.9 GB/s

Seq Write (up to)  4.2 GB/s

Random Read (up to)  1350 KIOPs

Random Write (up to)  190 KIOPs


Product Features

The following is a list of advanced or unique features supported by MS670


  • PCIe 4.0x4
  • NVMe 1.4
  • Capacity up to 7.68TB
  • Form Factor: U.2
  • DWPD: 1
  • 128 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • Secure Boot
  • Internal RAID
  • NVMe-MI (Management Interface)
  • VPD over SMBus Support

5-Year Warranty

   Backed by 5-Year Limited Warranty We promise a '5-year limited warranty and free technical support' for users to use with peace of mind.

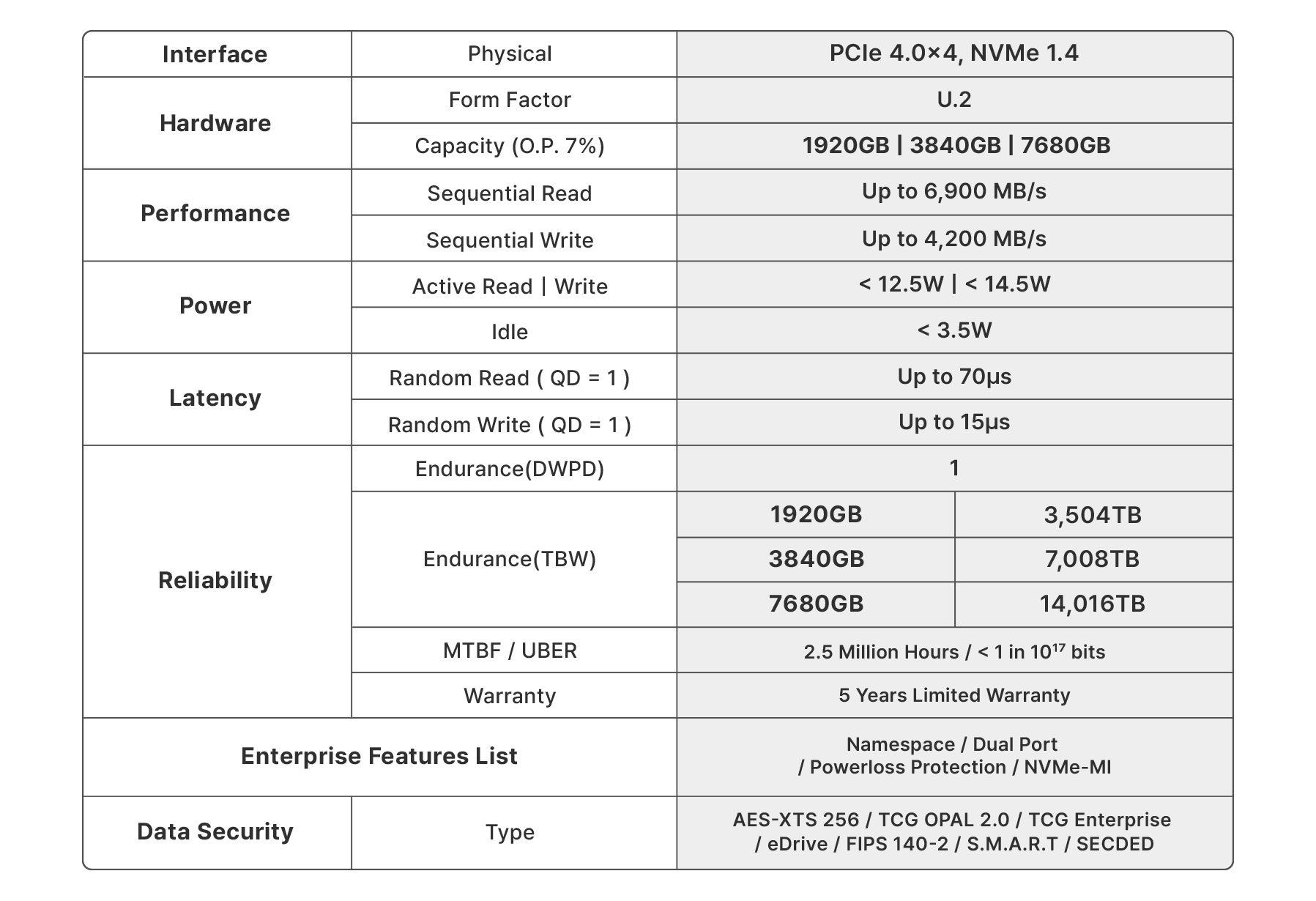

Specifications

Thorough quality control through in-house design and production



   Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.

KEY FEATURES

Sustained
Performance
Stable
Power
Dual-Port
Support
Low
Latency



Security


Excellent
QoS



Interface Specifications

PCIe Gen4x4 Dual Port






Capacity                                                  Form-Factor Specifications


1.92TB | 3.84TB | 7.68TB                                                                            U.2 2.5”








              Performance


                       Seq Read (up to)  6.9 GB/s


                       Seq Write (up to)  4.2 GB/s


                       Random Read (up to)  1350 KIOPs


                       Random Write (up to)  190 KIOPs







SSD Power Consumption                    SSD Function


Idle: MAX 3.5W  / Active: MAX 14.5W                                                       128 Namespaces / TCG Opal 2.0 / AES-XTS 256

                                                                                                                      / End-to-End / PLP / NVMe-MI







Product Features

The following is a list of advanced or unique features supported by MS670


  • PCIe 4.0 x4
  • NVMe 1.4
  • Capacity up to 7.68TB
  • Form Factor: U.2
  • DWPD: 1
  • 128 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • Secure Boot
  • Internal RAID
  • NVMe-MI (Management Interface)
  • VPD over SMBus Support


5-Year Warranty


Backed by 5-Year Limited Warranty

We promise a '5-year limited warranty and

free technical support' for users to use

with peace of mind.


                                      Specifications



Thorough quality control through in-house design and production

Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
