Fast data processing reduce download and loading speeds
for smoother, more enjoyable performance in gaming PCs, laptops.

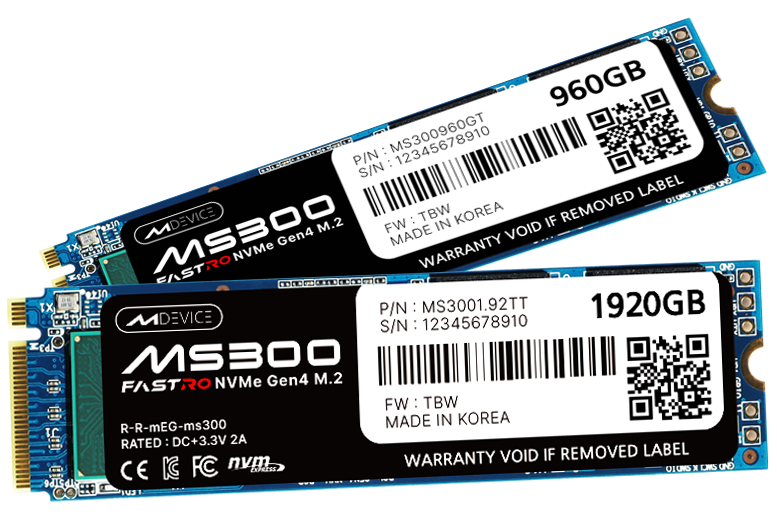

MS3OO
M.2 NVMe PCIe Gen4x4
Ideal SSD for High-End PCs
Fast data processing reduce download and loading speeds for smoother, more enjoyable performance in gaming PCs, laptops.
KEY FEATURES
SLC Cashing
High Performance
3D TLC NAND Flash and DRAM
High Capacity
up to 2TB
High Endurance
Reliable
Thermal Control
Interface Specifications
PCIe Gen4x4
Capacity
512 GB up to 2 TB
Form-Factor Specifications
NVMe M.2 2280(M key)
Memory
3D TLC NAND Flash Memory & DDR4 DRAM
High Endurance(TBW)
1,000 TB up to 4,000 TB
Performance

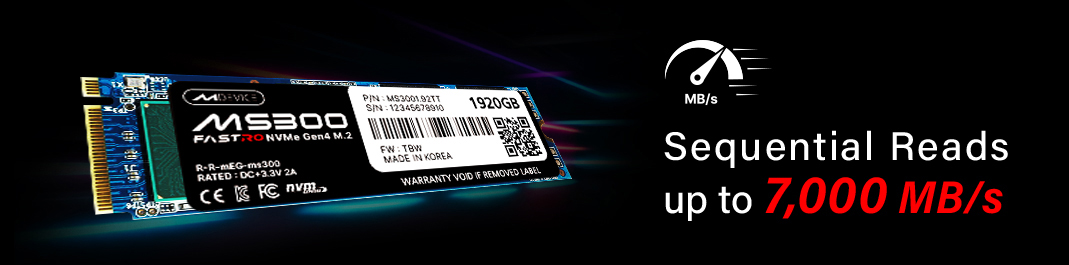

Sequential Read of 7,000MB/s
Sequential Write of 6,000MB/s
Product Features
The following is a list of advanced or unique features supported by MS300
NVMe PCIe Gen4x4
Sequential Read of 7,000MB/s
Sequential Write of 6,000MB/s
Capacity up to 2TB
Form Factor: M.2 2280(M key)
Endurance(TBW): 1,000TB up to 4,200TB
3D TLC NAND Flash & DDR4 DRAM
5 Years Warranty
5-Year Warranty
Backed by 5-Year Limited Warranty We promise a '5-year limited warranty and free technical support' for users to use with peace of mind.
Specifications
Thorough quality control through in-house design and production
Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
3D TLC NAND Flash Memory & DDR4 DRAM 1,000 TB up to 4,000 TB
Product Features
The following is a list of advanced or unique features supported by MS300
NVMe PCIe Gen4x4
Sequential Read of 7,000MB/s
Sequential Write of 6,000MB/s
Capacity up to 2TB
Form Factor: M.2 2280(M key)
Endurance(TBW): 1,000TB up to 4,000TB
3D TLC NAND Flash & DDR4 DRAM
5 Years Warranty
High Capacity
Up to 1.92TB without shortage of capacity
You can instantly jump back into
large intensive work files or graphics-heavy games.
5-Year Warranty
Backed by 5-Year Limited Warranty We promise a '5-year limited warranty and free technical support' for users to use with peace of mind.
Dynamic Thermal Throttling
Minimize laptop power consumption and heat generation as SSD performance requirements increase, power consumption usually increases, while SSD size requirements are usually the same or smaller. To prevent overheating, FASTRO SSD products have a built- in thermal sensor, monitor the SSD's temperature via S.M.A.R.T command, configure the drive with thermal throttling firmware to manage the device temperature when responding to temperature rises.

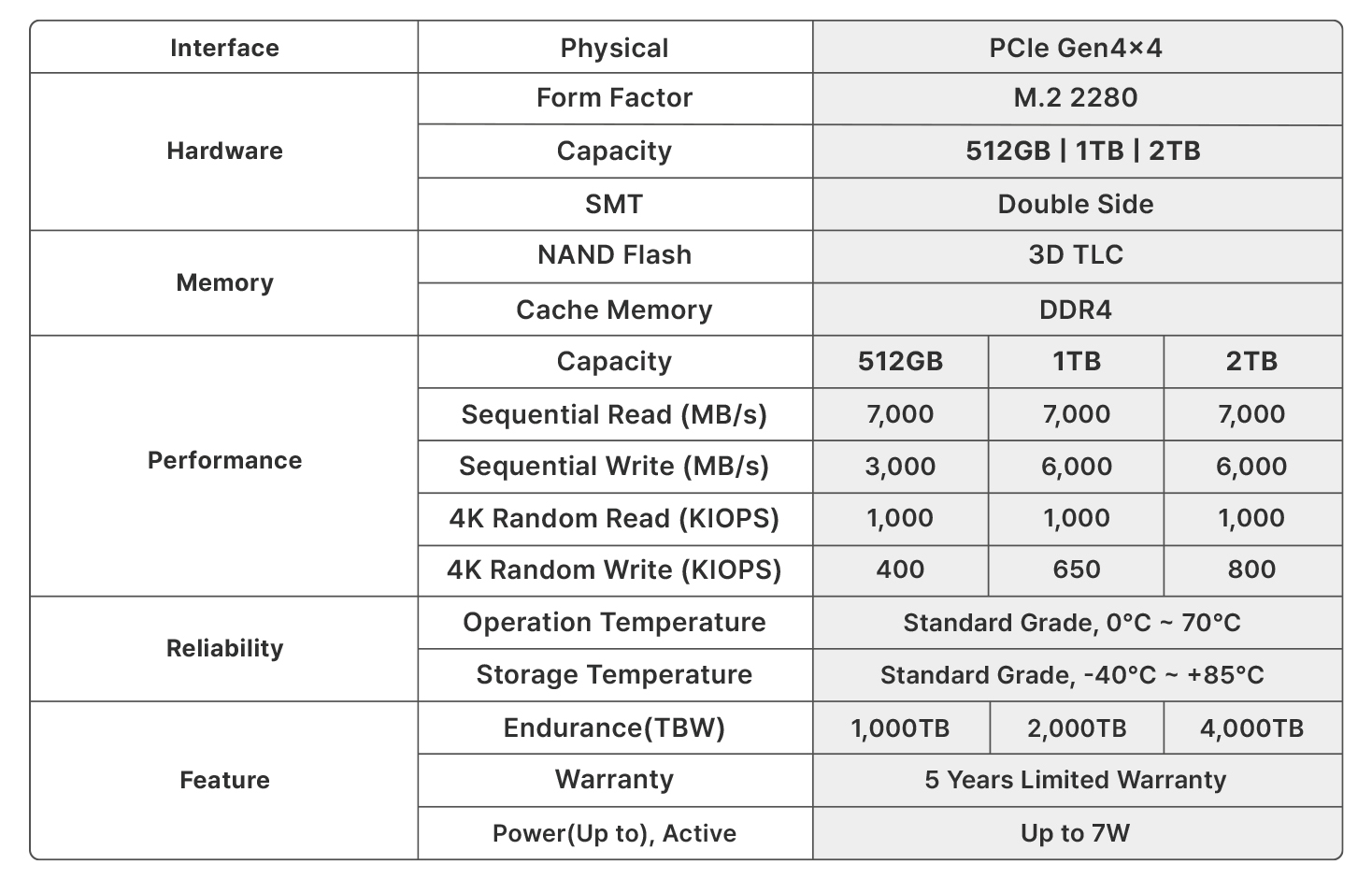

Specifications
Interface
Physical
PCle 4.0x4
Hardware
Form Factor
M.2 2280 Double Side
Capacity
512GB｜960GB｜1.92TB
Memory
NAND Flash
3D TLC
Cache Memory
DDR4
Performance
Sequential Read
7,000 MB/s
Sequential Write
6,000 MB/s
IOPS
4K Random Read
1,000K IOPS
4K Random Write
800K IOPS
Reliability
Operation Temperature
Standard Grade, 0°C ~ 70°C
Storage Temperature
Standard Grade, -40°C ~ +85°C
Feature
Endurance(TBW)
512GB
1,000TB
960GB
2,000TB
1920GB
4,000TB
Warranty
5 Years Limited Warranty
Power(Up to) Ref Capacity : 1TB, Active
7W(Max)
- All product specifications reflect internal results and may vary depending on the user's system configuration.
- All product images are examples and may not precisely match the actual product.
- Mdevice reserves the right to change product images and documentation at any time without prior notice.
