Returning to the performance of doing more, faster, FASTRO NVMe SSDs are optimized for the growing number of non-face-to-face computing environments.
KEY FEATURES
SLC Cashing
High Performance
3D TLC NAND Flash and DDR4 DRAM
High Capacity
up to 4TB
High Endurance
Reliable
Thermal Control
Interface Specifications
PCIe Gen5x4
Capacity
1 T B up to 4 TB
Form-Factor Specifications
NVMe M.2 2280(M key)
Memory
3D TLC NAND Flash Memory & DDR4 DRAM
High Endurance(TBW)
700 TB up to 3,200 TB
Performance
Sequential Read of 14,000MB/s
Sequential Write of 12,000MB/s
Product Features
The following is a list of advanced or unique features supported by MS550
NVMe PCIe Gen5x4
Sequential Read of 14,000MB/s
Sequential Write of 12,000MB/s
Capacity up to 4TB
Form Factor: M.2 2280(M key)
Endurance(TBW): 700TB up to 3,200TB
3D TLC NAND Flash & DDR4 DRAM
5 Years Warranty
5-Year Warranty
Backed by 5-Year Limited Warranty We promise a '5-year limited warranty and free technical support' for users to use with peace of mind.
Specifications
- All product specifications reflect internal results and may vary depending on the user's system configuration.
- All product images are examples and may not precisely match the actual product.
- Mdevice reserves the right to change product images and documentation at any time without prior notice.
Thorough quality control through in-house design and production
Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.

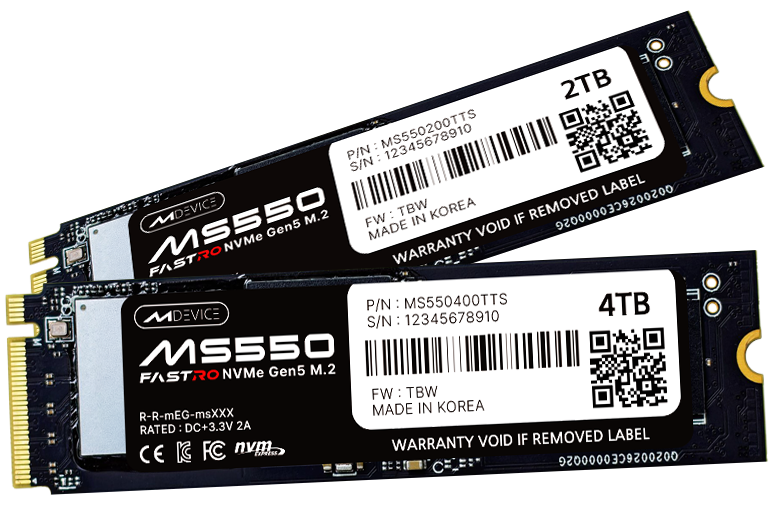

MS550
M.2 NVMe PCIe Gen5x4
Optimal SSD with Exceptional Price-Performance
Returning to the performance of doing more, faster, FASTRO NVMe SSDs
are optimized for the growing number of non-face-to-face computing environments.
3D TLC NAND Flash Memory & DDR4 DRAM 700 TB up to 3,000 TB
Product Features
The following is a list of advanced or unique features supported by MS550
NVMe PCIe Gen5x4
Sequential Read - Up to 14,000MB/s
Sequential Write - Up to 12,000MB/s
Capacity up to 4TB
Form Factor: M.2 2280(M key)
Endurance(TBW): 700TB up to 3,000TB
3D TLC NAND Flash & DDR4 DRAM
5 Years Warranty
High Capacity
Up to 4TB without shortage of capacity
You can instantly jump back into
large intensive work files or graphics-heavy games.
5-Year Warranty
Backed by 5-Year Limited Warranty We promise a '5-year limited warranty and free technical support' for users to use with peace of mind.

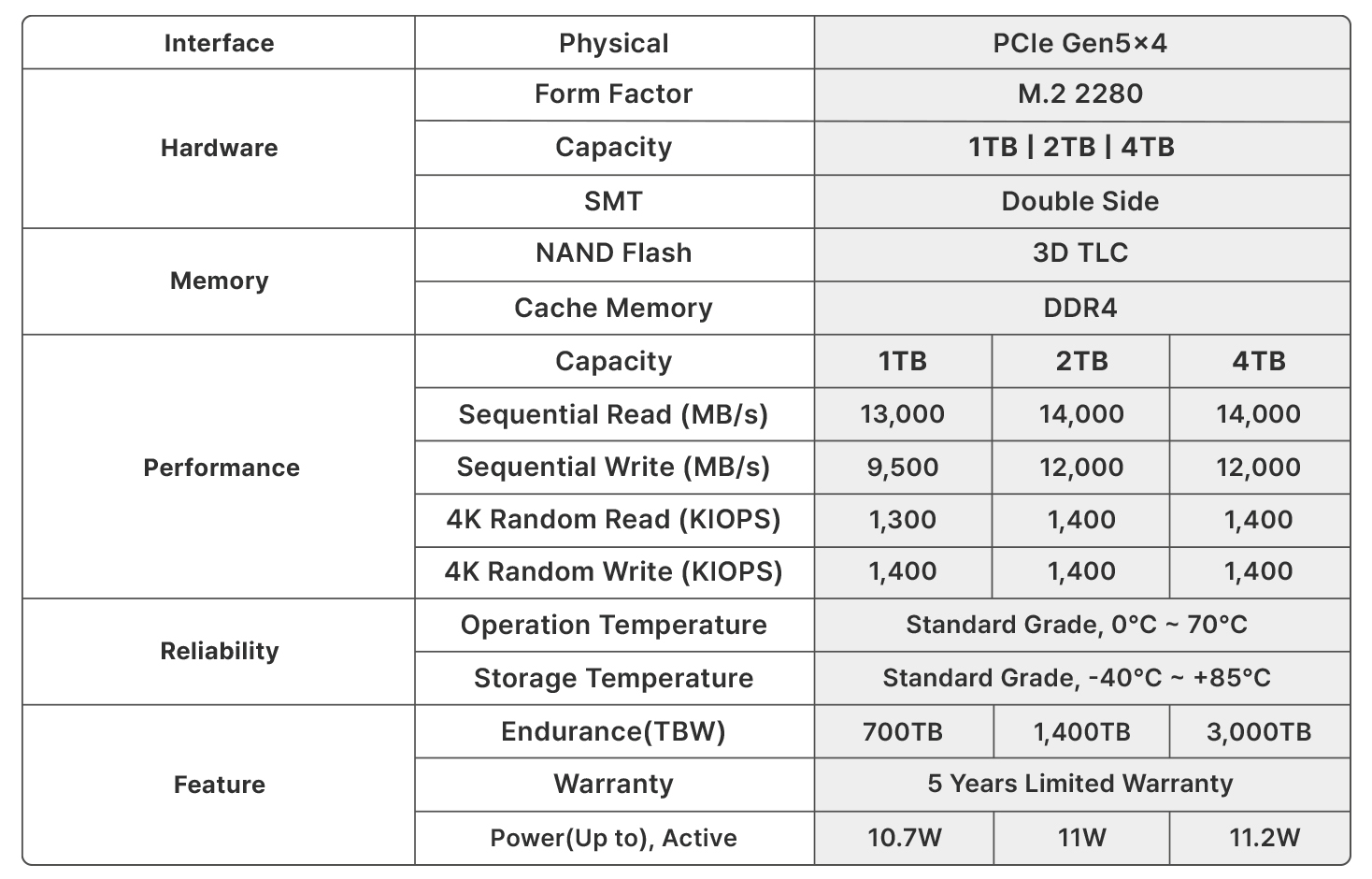

MS550 Specifications
Interface
Physical
PCIe Gen5x4
Hardware
Form Factor
M.2 2280
Capacity
1TB｜2TB｜4TB
SMT
Double Side
Memory
NAND Flash
3D TLC
Cache Memory
DDR4
Performance
Capacity
1TB
2TB
4TB
Sequential Read (MB/s)
13,000
14,000
14,000
Sequential Write (MB/s)
9,500
12,000
12,000
4K Read (KIOPS)
1,300
1,400
1,400
4K Write (KIOPS)
1,400
1,400
1,400
Reliability
Operation Temperature
Standard Grade, 0°C ~ 70°C
Storage Temperature
Standard Grade, -40°C ~ +85°C
Feature
Endurance(TBW)
700TB
1,400TB
3,000TB
Warranty
5 Years Limited Warranty
Power(Up to), Active
10.7W
11W
11.2W
- All product specifications reflect internal results and may vary depending on the user's system configuration.
- All product images are examples and may not precisely match the actual product.
- Mdevice reserves the right to change product images and documentation at any time without prior notice.
Thorough quality control through in-house design and production
Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
