Returning to the performance of doing more, faster, FASTRO NVMe SSDs are optimized for the growing number of non-face-to-face computing environments.
KEY FEATURES
SLC Cashing
High Performance
3D TLC NAND Flash and DDR4 DRAM
High Capacity
up to 4TB
High Endurance
Reliable
Thermal Control
Interface Specifications
PCIe Gen5x4
Capacity
1 T B up to 4 TB
Form-Factor Specifications
NVMe M.2 2280(M key)
Memory
3D TLC NAND Flash Memory & DDR4 DRAM
High Endurance(TBW)
700 TB up to 3,200 TB
Performance
Sequential Read of 14,000MB/s
Sequential Write of 12,000MB/s
Product Features
The following is a list of advanced or unique features supported by MS550
NVMe PCIe Gen5x4
Sequential Read of 14,000MB/s
Sequential Write of 12,000MB/s
Capacity up to 4TB
Form Factor: M.2 2280(M key)
Endurance(TBW): 700TB up to 3,200TB
3D TLC NAND Flash & DDR4 DRAM
5 Years Warranty
5-Year Warranty
Backed by 5-Year Limited Warranty We promise a '5-year limited warranty and free technical support' for users to use with peace of mind.
Specifications
Thorough quality control through in-house design and production
Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.

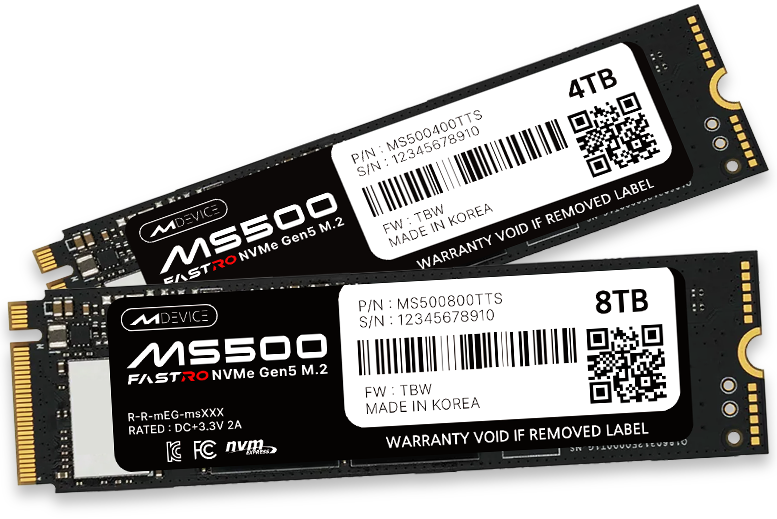

MS500
M.2 NVMe PCIe Gen5x4 DRAM-Less
Optimal SSD with Exceptional Price-Performance
Returning to the performance of doing more, faster, FASTRO NVMe SSDs
are optimized for the growing number of non-face-to-face computing environments.
3D TLC NAND Flash Memory & DRAM-Less 600 TB up to 4,800 TB
Product Features
The following is a list of advanced or unique features supported by MS500
NVMe PCIe Gen5x4
Sequential Read of 10,600MB/s
Sequential Write of 9,600MB/s
Capacity up to 8TB
Form Factor: M.2 2280(M key)
Endurance(TBW): 600TB up to 4,800TB
3D TLC NAND Flash & DRAM-Less
5 Years Warranty
High Capacity
Up to 8TB without shortage of capacity
You can instantly jump back into
large intensive work files or graphics-heavy games.
5-Year Warranty
Backed by 5-Year Limited Warranty We promise a '5-year limited warranty and free technical support' for users to use with peace of mind.
MS500 Specifications
Interface
Physical
PCle 5.0x4, NVMe 2.0
Hardware
Form Factor
M.2 2280
Capacity
1TB｜2TB｜4TB ｜8TB
Memory
NAND Flash
3D TLC & QLC
Cache Memory
DRAM-Less
Performance
Sequential Read
10,600 MB/s
Sequential Write
9,600 MB/s
IOPS
4K Random Read
1,500K IOPS
4K Random Write
2,200K IOPS
Reliability
Operation Temperature
Standard Grade, 0°C ~ 70°C
Storage Temperature
Standard Grade, -40°C ~ +85°C
Feature
Endurance(TBW)
1TB
600TB
2TB
1,200TB
4TB
2,400TB
8TB
4,800TB
Warranty
5 Years Limited Warranty
- All product specifications reflect internal results and may vary depending on the user's system configuration.
- All product images are examples and may not precisely match the actual product.
- Mdevice reserves the right to change product images and documentation at any time without prior notice.
Thorough quality control through in-house design and production
Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
