MP400


Enterprise SSD PCIe 4.0x4 U.2


MP400 SSD Platform

– Outstanding Overachiever Enterprise-Class PCIe Gen 4x4 SSD



The MP400 SSD platform offers unrivaled performance while consuming the least amount of power for its class.

Utilizing Mdevice’s unique and patented CPU architecture, the MP400 is available up to 30.72TB at only 21W.


MP400 is compliant with FIPS-140 standards for cryptographic modules and is available with other security specifications.

Support through our IMAGIN+ customization service allows you to align this solution with your required security standards.

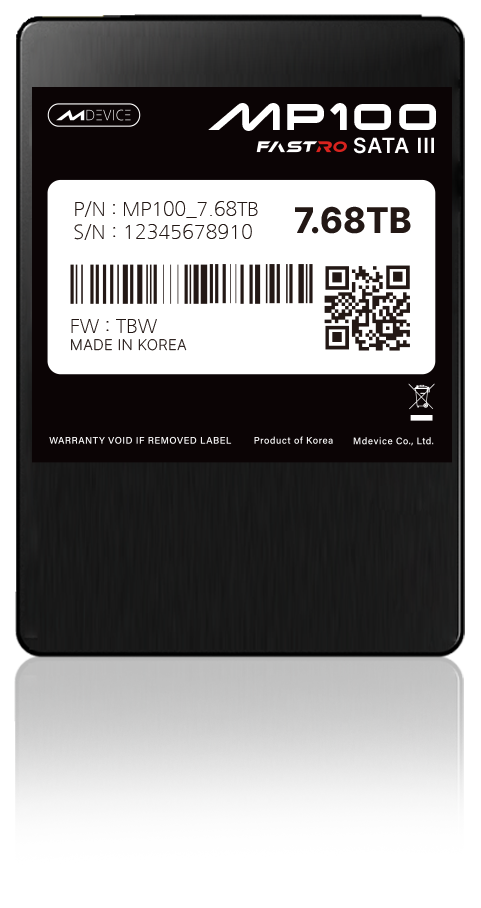

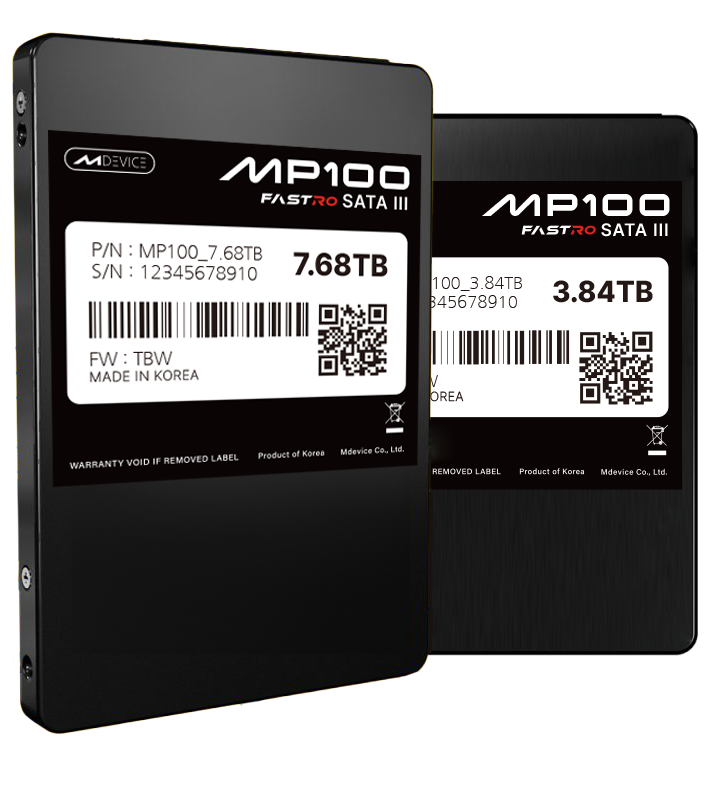

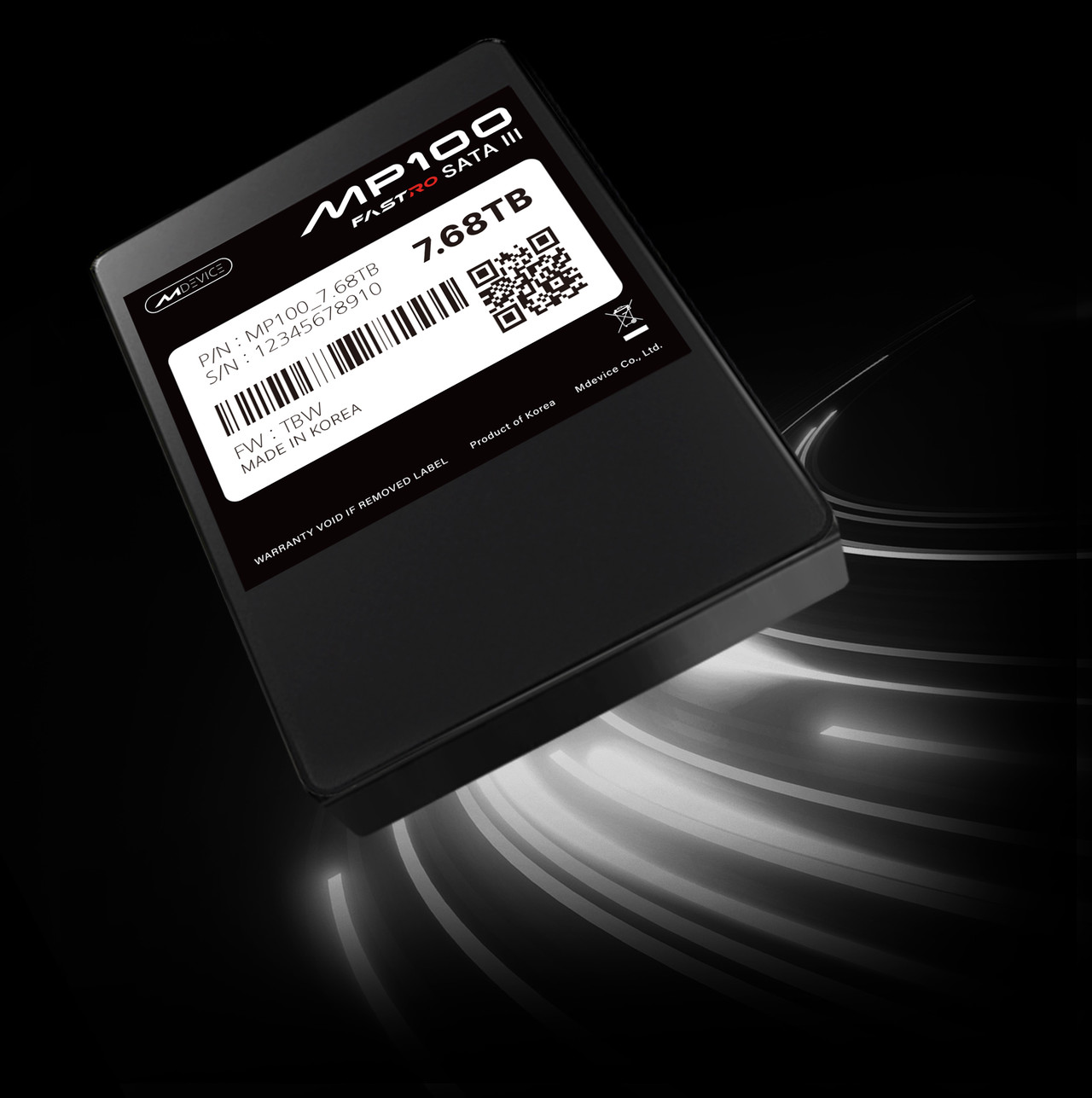

MP1OO

Enterprise SATA III


An Innovative Choice for Server Storage Capacity


The MP100 is ideal for data centers that require optimal sustained performance with heavy mixed workloads. It is suitable for a variety of servers such as web, streaming, application and cache servers.



KEY FEATURES


Low

Latency


Security



Excellent

QoS


High Capacity

up to 7.68TB


High

Endurance


Low

Power

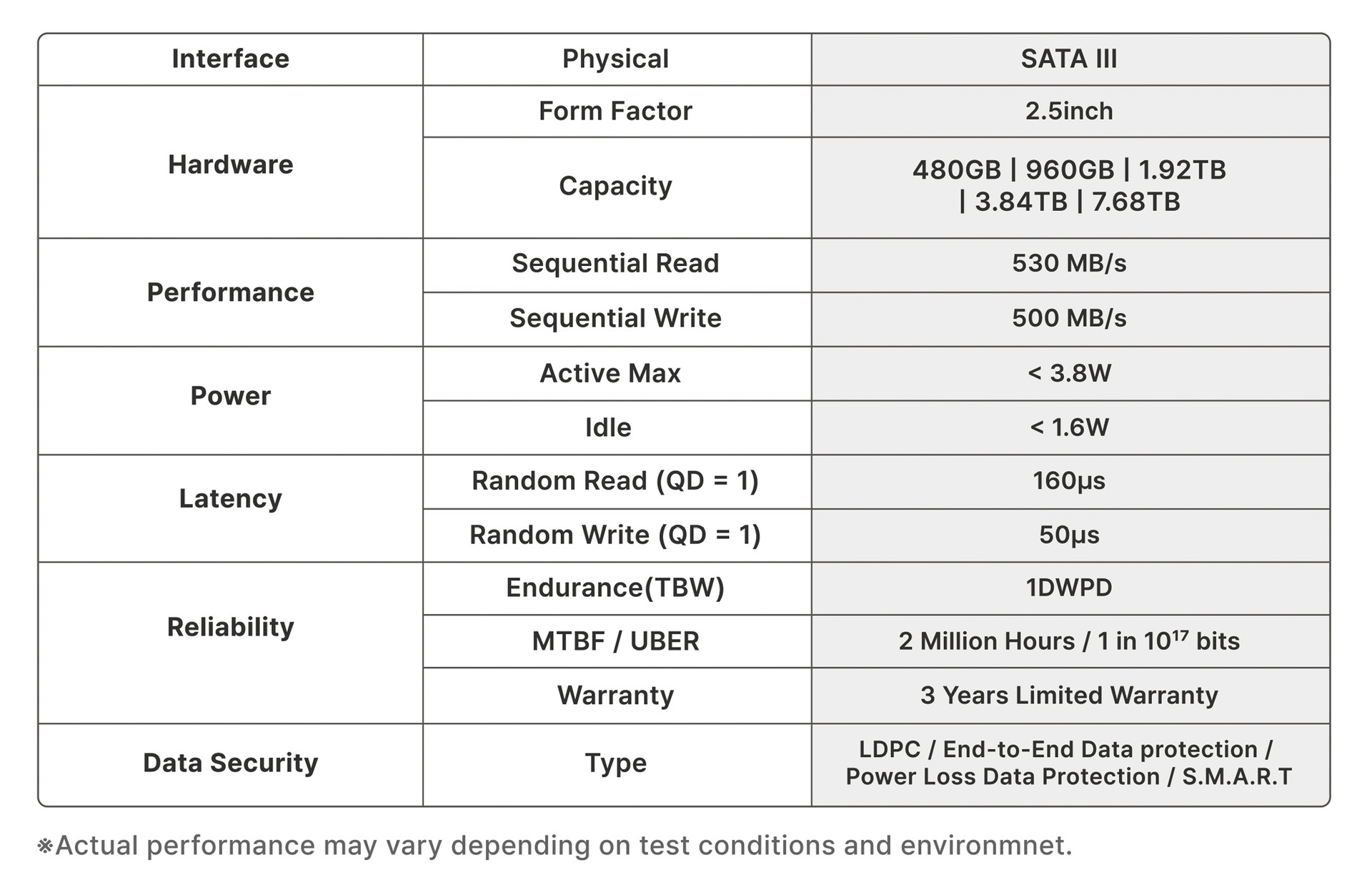

Interface Specifications

SATA III

Capacity

480 GB up to 7.68TB





Form-Factor Specifications

2.5” 7mm｜15mm




SSD Power Consumption

Idle: MAX 1.6W / Active: MAX 3.8W




SSD Function

LDPC / End-to-End Data Protection /

Power Loss Data Protection / S.M.A.R.T




 Performance

Seq Read (up to)  530 MB/s

Seq Write (up to)  500 MB/s


Product Features

The following is a list of advanced or unique features supported by MP100


  • PCIe 4.0 1x4 / 2x2 (Dual port)
  • NVMe 1.4
  • Capacity up to 30.72TB
  • Form Factor: U.2
  • DWPD: 1
  • 64 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • SECDED
  • Sanitize
  • NVMe-MI (Management Interface)
  • SMBus

3-Year Warranty

   Backed by 3-Year Limited Warranty We promise a '3-year limited warranty and free technical support' for users to use with peace of mind.

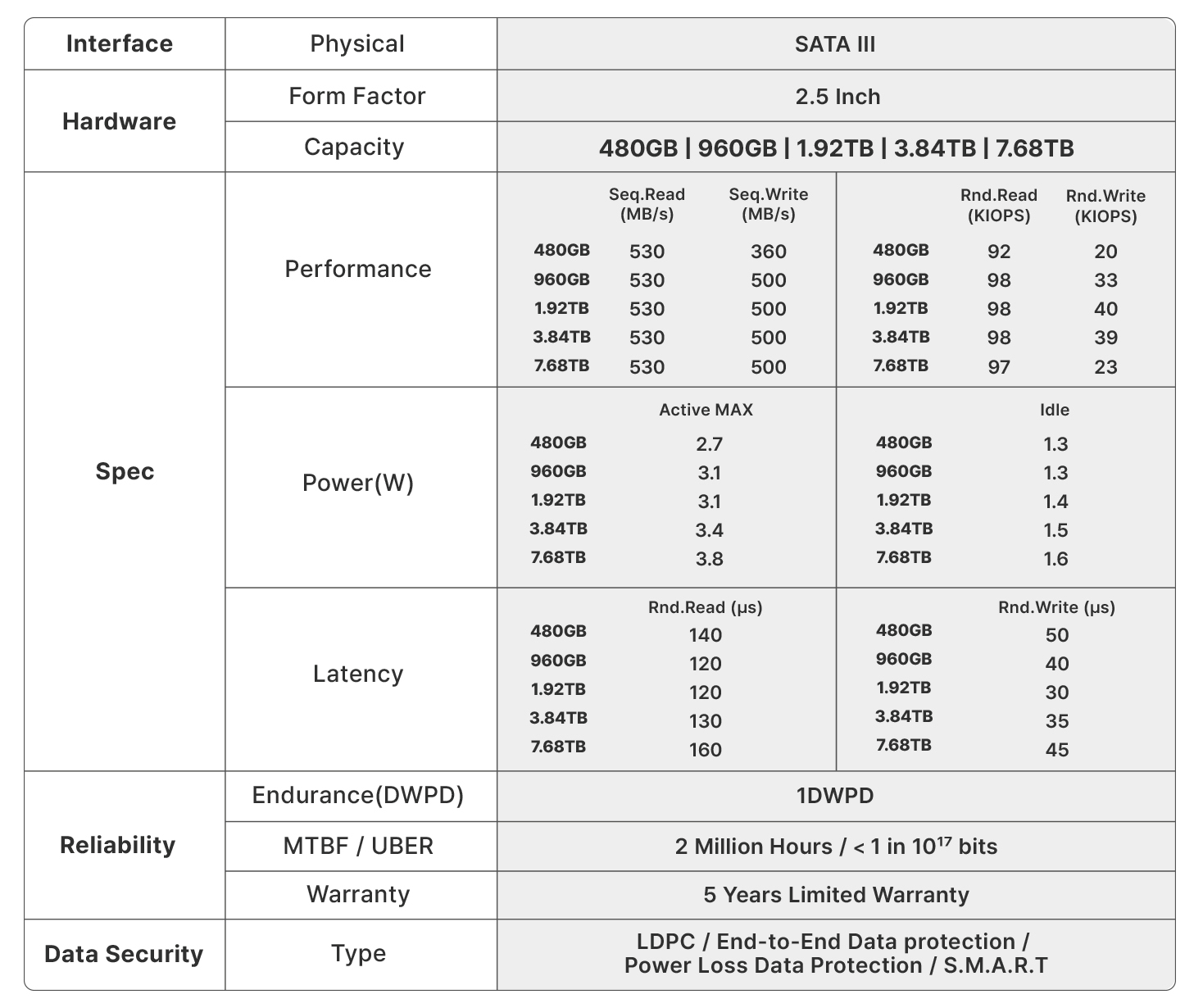

Specifications

Thorough quality control through in-house design and production



   Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.

KEY FEATURES

Sustained
Performance
Dual-Port
Support
Stable
Power
High Capacity
up to 30.72TB


Security


Reliable
Thermal Control



Interface Specifications

PCIe Gen4x4 Dual Port



The MP400 features dual ports to ensure

smooth computing even if one port fails.


This helps preserve business continuity.





Capacity                                                  Form-Factor Specifications


1.6 TB up to 30.72 TB                                                                                   U.2 2.5”








              Performance


                       Seq Read (up to)  7.0 GB/s


                       Seq Write (up to)  6.8 GB/s


                       Random Read (up to)  1600 KIOPs


                       Random Write (up to)  480 KIOPs







SSD Power Consumption                SSD Function


Idle: MAX 6W / Active: MAX 21W                                                      64 Namespaces / ISE / TCG Opal 2.0 / AES-XTS 256 / End-to-End

                                                                                                              PLP / NVMe-MI







Product Features

The following is a list of advanced or unique features supported by MP400


  • PCIe 4.0 1x4 / 2x2 (Dual port)
  • NVMe 1.4
  • Capacity up to 30.72TB
  • Form Factor: U.2
  • DWPD: 1
  • 64 Namespaces
  • Power Loss Protection (PLP)
  • TCG Opal 2.0 Support
  • AES-XTS 256-bit Encryption
  • End-to-End Data Path Protection
  • Metadata Protection
  • SECDED
  • Sanitize
  • NVMe-MI (Management Interface)
  • SMBus


3-Year Warranty


Backed by 3-Year Limited Warranty

We promise a '3-year limited warranty and

free technical support' for users to use

with peace of mind.


                         MP400 Specifications





Interface
Physical
PCIe 4.0x4, NVMe 1.4

Hardware

Form Factor
U.2
Capacity (O.P. 7%)
1920GB｜3840GB｜7680GB｜15.36TB｜30.72TB
Capacity (O.P. 28%)
1600GB｜3200GB｜6400GB｜12.8TB｜25.6TB
Performance
Sequential Read
7,000 MB/s
Sequential Write
6,800 MB/s
Power
Active Read｜Write
< 21W｜< 19W
Idle
< 9W
Latency
Random Read (QD = 1 )
110µs
Random Write  (QD = 1 )
15µs

Endurance(DWPD)
1(O.P 7%)
3(O.P 28%)
Reliability
Endurance(TBW)
1920GB
3,504TB
1600GB
8,760TB
3840GB
7,008TB
3200GB
17,520TB
7680GB
14,016TB
6400GB
35,040TB
15.36TB
28,032TB
12.8TB
70,080TB
30.72TB
56,064TB
25.6TB
140,160TB
MTBF / UBER
2 Million Hours / < in 10¹⁸ bits
Warranty
3 Years Limited Warranty
Enterprise Features List
Namespace / Dual Port / Resevation / Metadata Protection
/ Powerloss Protection
Data Security
Type
ECC / Static and Dynamic Wear Leveling / Bad Block Management / TRIM / S.M.A.R.T. / Over-Provision / AES-XTS 256 / TCG OPAL 2.0

- All product specifications reflect internal results and may vary depending on the user's system configuration.

- All product images are examples and may not precisely match the actual product.

- Mdevice reserves the right to change product images and documentation at any time without prior notice.

Thorough quality control through in-house design and production

Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
