MP500E1


Enterprise SSD PCIe 5.0x4 E1.S


Versatile PCIe Gen5 Storage for Dynamic Data Center Workloads


MP500E1 meets the evolving demands of data center, cloud, and edge infrastructure.



MP500E1

Enterprise SSD PCIe 5.0x4 E1.S


MP500E1 Versatile PCIe Gen5 Storage for Dynamic Data Center Workloads


MP500E1 meets the evolving demands of data center, cloud, and edge infrastructure.



KEY FEATURES


Sustained

Performance


Stable

Power



PCIe

Gen5


Reliability


Security


E1.S

Form-Factor

Interface Specifications

PCIe Gen5x4 Single Port

Capacity

1.6 TB up to 7.68 TB





Form-Factor Specifications

EDSFF E1.S




SSD Power Consumption

Active: MAX 23W / Idle: MAX 4.9W




SSD Function

128 Namespaces / ISE / TCG Opal 2.0 / AES-XTS 256 / End-to-End / PLP / NVMe-MI




 Performance

Seq Read (up to)  14.0 GB/s

Seq Write (up to)  8.5 GB/s

Random Read(up to) 3,000 KIOPs

Random Write(up to) 800 KIOPs

Product Features

The following is a list of advanced or unique features supported by MP500E1


• PCIe 5.0 x4

• NVMe 2.0

• Capacity up to 7.68TB

• Form Factor: EDSFF E1.S

• DWPD: 1,3

• 128 Namespaces

• Power Loss Protection (PLP)

• ISE, TCG Opal 2.0 Support

• AES-XTS 256-bit Encryption

• End-to-End Data Path Protection

• Metadata Protection

• SECDED

3-Year Warranty

   Backed by 3-Year Limited Warranty We promise a '3-year limited warranty and free technical support' for users to use with peace of mind.

Specifications

- All product specifications reflect internal results and may         vary depending on the user's system configuration.

- All product images are examples and may not precisely match the actual product.

- Mdevice reserves the right to change product images and documentation at any time without prior notice.

Thorough quality control through in-house design and production



   Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.

KEY FEATURES

Sustained
Performance
Stable
Power
PCIe Gen5
Reliability


Security


E1.S
Form-Factor



Interface Specifications

PCIe Gen5x4 Single Port




Capacity                                                  Form-Factor Specifications


1.6 TB up to 7.68 TB                                                                                    EDSFF E1.S











              Performance


                       Seq Read (up to)  14.0 GB/s


                       Seq Write (up to)  8.5 GB/s


                       Random Read (up to)  3,000 KIOPs


                       Random Write (up to)  880 KIOPs





SSD Power Consumption               SSD Function


Active: MAX 23W / Idle: MAX 4.9W                                                 6128 Namespaces / ISE / TCG Opal 2.0 / AES-XTS 256 / End-to-End                                                                                                             / PLP / NVMe-MI







Product Features

The following is a list of advanced or unique features supported by MP500E1


•  PCIe 5x4

•  NVMe 2.0

•  Capacity up to 7.68TB

•  Form Factor: EDSFF E1.S

•  DWPD: 1,3

•  128 Namespaces

•  Power Loss Protection (PLP)

•  ISE, TCG Opal 2.0 Support

•  AES-XTS 256-bit Encryption

•  End-to-End Data Path Protection

•  Metadata Protection

•  SECDED

•  Sanitize

•  NVMe-MI (Management Interface)

•  SMBus


3-Year Warranty


Backed by 3-Year Limited Warranty

We promise a '3-year limited warranty and

free technical support' for users to use

with peace of mind.

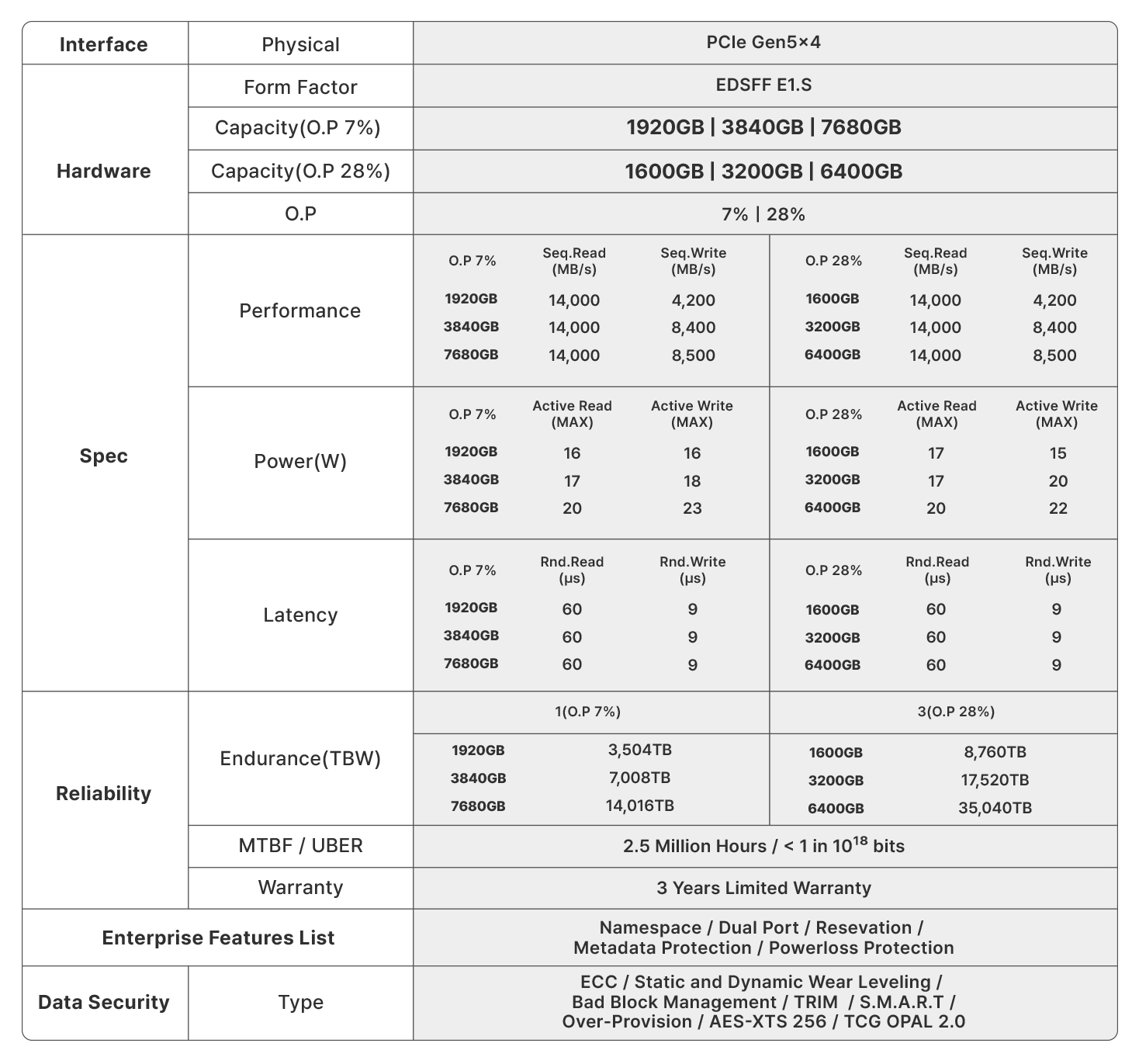

MP500E1 Specifications



Interface
Physical
PCIe Gen5x4

Hardware

Form Factor
EDSFF E1.S
Capacity(O.P 7%)
1920GB | 3840GB | 7680GB
Capacity(O.P 28%)
1600GB | 3200GB | 6400GB
O.P
7% | 28%
Spec

Performance
O.P 7%
Seq.Read
(MB/s)
Seq.Write
(MB/s)
O.P 28%
Seq.Read
(MB/s)
Seq.Write
(MB/s)
1920GB
14,000
4,200
1600GB
14,000
4,200
3840GB
14,000
8,400
3200GB
14,000
8,400
7680GB
14,000
8,500
6400GB
14,000
8,500

Power(W)
O.P 7%
Active Read
(MAX)
Active Write
(MAX)
O.P 28%
Active Read
(MAX)
Active Write
(MAX)
1920GB
16
16
1600GB
17
15
3840GB
17
18
3200GB
17
20
7680GB
20
23
6400GB
20
22
Latency
O.P 7%
Rnd.Read(㎲)Rnd.Write(㎲)
O.P 28%
Rnd.Read(㎲)Rnd.Write(㎲)
1920GB
60
9
1600GB
60
9
3840GB
60
9
3200GB
60
9
7680GB
60
9
6400GB
60
9

Reliability


Endurance(TBW)
1(O.P 7%)
3(O.P 28%)
1920GB
3,504TB
1600GB
8,760TB
3840GB
7,008TB
3200GB
17,520TB
7680GB
14,016TB
6400GB
35,040TB
MTBF / UBER
2.5 Million Hours / < 1 in 10¹⁸ bits
Warranty
3 Years Limited Warranty
Enterprise Features List

Namespace / Single Port / Resevation

/  Metadata Protection / Powerloss Protection

Data Security
Type

ECC / Static and Dynamic Wear Leveling / Bad Block Management

 / TRIM  / S.M.A.R.T / Over-Provision / AES-XTS 256 / TCG OPAL 2.0


- All product specifications reflect internal results and may vary depending on the user's system configuration.

- All product images are examples and may not precisely match the actual product.

- Mdevice reserves the right to change product images and documentation at any time without prior notice.

Thorough quality control through in-house design and production

Thorough quality control is possible because all SSD production processes such as circuit, PCB design, and memory tests are carried out as an in-house solution through a one-stop process. We minimize the defective rate through 100% RDT(Reliability Demonstration Test) testing for memory bad blocks and thorough quality testing.
